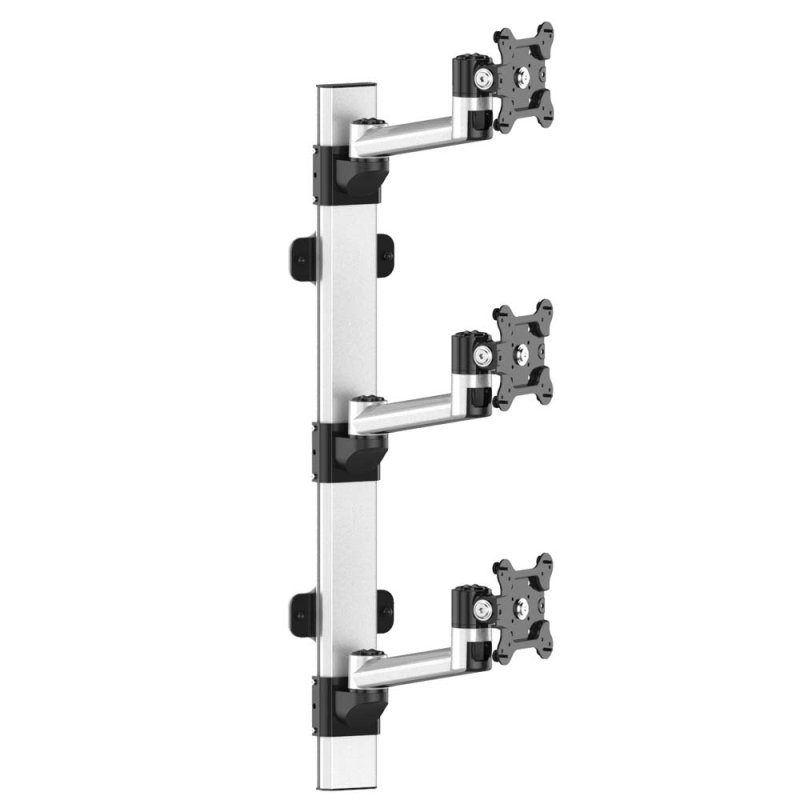

Vertical 3 Monitor Wall Mount, Swivel Arm
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price

Vertical 3 Monitor Wall Mount, Swivel Arm

Our innovative 'fantastic three' three-monitor wall display solution lets you feel like a superhero in the workplace. The three individual swivel arms let you freely position your three monitors for the optimal viewing experience.

Information Specifications Reviews Other Solutions
Availability: In stock


Ergonomically designed to support three wall-mounted monitors, this ingenious multi-monitor stand is lightweight, fully adjustable, and easy to install. The swivel arms allow tilting and pivoting movements up to 115 degrees, giving you the freedom to position your monitors vertically or horizontally, perfect for control room functions.

Constructed from lightweight and durable aluminum, the HV-S3SW model comes with a heavy-duty wall plate, ensuring that your monitors will stay put on any wall surface. Ideal for workplaces that require day-to-day multi-screen displays, our sleek, comprehensive display solution will save the day in style!

Each swivel arm is designed to be compatible with any flat screen or tablet monitor of varying sizes that weigh up to 22lbs (approx. 10 kg.). Each HV-S3SW comes complete with a silver three-monitor wall display with three individual swivel arms and a set of wall mounting.


  • Vertical Wall Mount Type: Supports up to 3 x 25" LCD monitors with the standard offering or up to 3 x 32" with the option of HVW-S11
  • Easy-adjust by hands: 90 degrees backward / 25 degrees forward tilting 90-degree rotation and at bracket as well as an arm with 90-degree swivel
  • Smooth extension 14.7" (373 mm) to achieve ideal viewing angles
  • A quick-release lever facilitates easy attachment and removal
  • Swivel arm features quick release design: only a matter of a 'click' to get connected and with the push of a button then lift off to get disconnected
  • Easy manual height adjustment
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Easy to use: Simple installation and effortless operation
  • Cable management feature conceals and routes cables under the arm, out of the way
  • Made predominantly of steel and aluminum, which are highly recyclable
  • Height Adjustment Range: 9.4" dynamically with Front-end Adjuster (FVL-S1) option
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 3 x 32" flat panel screen
  • Weight Capacity Supports up to 44 Lbs (20 Kg) for each monitor
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 5.1" (130 mm)
  • Maximum Extension 14.7" (373 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm), optional 2.9" X 43.3" (74 X 1100 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
