Triple Arc and Swivel Slideable Wall Mount
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price
$580.00

Triple Arc and Swivel Slideable Wall Mount

Create a truly beautiful display with three side-by-side monitor mounts on a durable crossbar that you can arrange in an effortless arc or a straight line.
Information Specifications Reviews Other Solutions
In stock
SKU
HV-S3SWJ3

Description

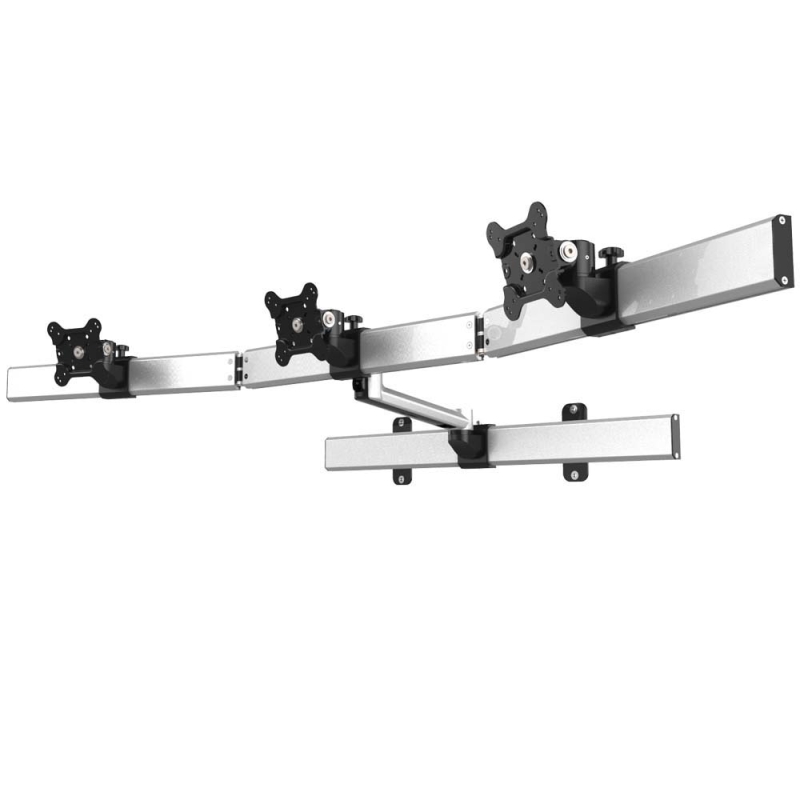

Mounting three flat panel monitors has never been easier! The sleek silver and black mounting system is lightweight, yet incredibly strong to lock your monitors in position. Whether you install the mounting slide bar horizontally or vertically, this system offers enhanced features to customize the best viewing angles in your space.

Slide the entire monitor system across the main bar and adjust the swivel arm for a wide range of motion. The monitor beam that holds the three displays can be adjusted straight across or into a popular arc-style viewing shape. You can even adjust the individual monitors with a wide range of flexibility. Easily adjust by hand to access 115-degrees of tilt and 90-degree rotation to quickly change between portrait and landscape orientations.

Features

  • Supports three flat panel VESA monitors up to 28” with mounting hole patterns of 75 x 75 and 100 x 100
  • Provides full-range of extending, retracting, tilting, swiveling, rotation and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
  • Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics and extended life
  • Dual-directional wall mount bar can be placed vertically or horizontally; making it flexible for single stud or double stud mounting; Length: 31.5" (80cm)
  • The specially designed bar has two great features: it can be slided along the two wall mount brackets, which is especially useful when the wall surface is not summetrical; and monitors can be slided along this bar for best positioning
  • Three-section two-fold joint beam length: 65.87"
  • Quick release/attachment mounting heads and swivel arm to assist with multiple installations
  • Dynamically adjust height up to 9.4" with Dynamic Height Adjuster (Select One) optional accessory
  • Excellent space saving and ergonomic solution
  • Cable management housings and clips on the underside of the arms route and hide cords
  • Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 3 x 32" flat panel screen
  • Weight Capacity Supports up to 66 Lbs (30 Kg) in total
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Dynamic Height Adjustment 17.7" (450 mm) for each
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 8" (205 mm)
  • Maximum Extension 17.75" (451 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm)
  • Mounts on Studs Double-stud (mount spacing of 16" (406 mm)
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
