Tic Tac Toe Vertical Swivel Arm Nine Monitor Mount

Stack your view with three swivel arms that offer 115-degree tilt, 180-degree swivel, and 90-degree rotation for nine monitors across three rows.

Information Specifications Reviews Other Solutions
Availability: In stock

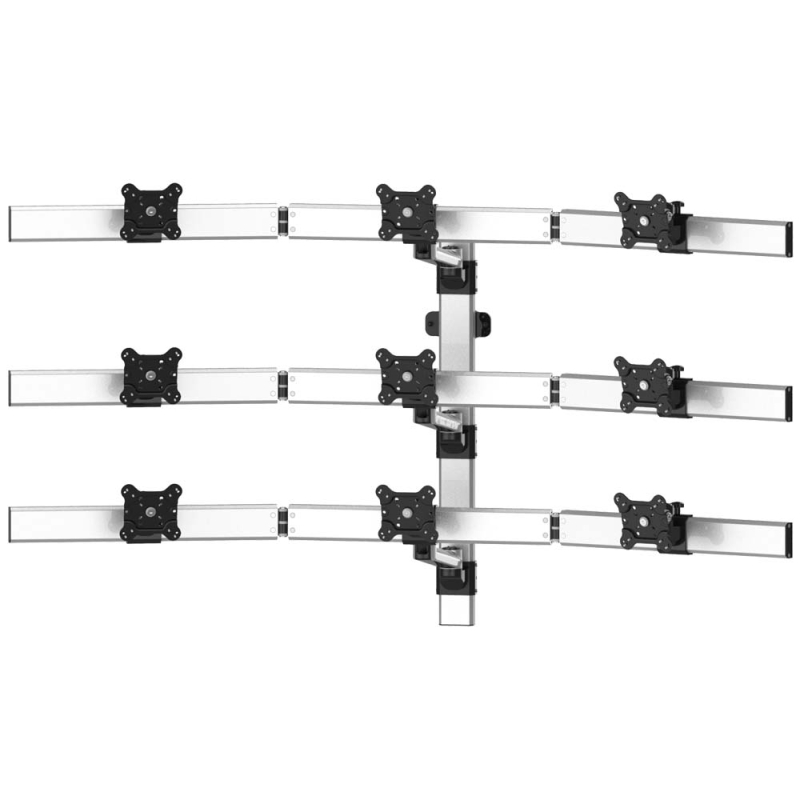

Create an impressive, expansive display that will revolutionize your workflow and make a huge impression with the Tic Tac Toe Vertical Swivel Arm Monitor Nine Mount. This expansive design holds up to nine monitors mounted in groups of three on three horizontally stacked crossbars. Aluminum alloy material is the most lightweight material with the strength needed to hold all your monitors securely. Plus, it's sleek and modern with shining silver and stark black design.

In addition to arcing the crossbar frames, each monitor can also be adjusted with a 180-degree swivel, 115-degree tilt to reduce glare, and 90-degree rotation to accommodate portrait and landscape viewing. Easily adjust each monitor into the perfect position and enjoy the innovative design that locks it perfectly in place.


  • Supports nine flat-panel VESA monitors up to 28" with mounting hole patterns of 75 x 75 and 100 x 100, or up to 30" with an optional 43.3" wall mount bar
  • Provides full-range of extending, retracting, tilting, swiveling, rotation, and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
  • Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics, and extended life
  • Mount on a single stud
  • Vertical wall mount bar length: 31.5" (80cm); Optional 43.3" (110cm) length available for supporting nine monitors up to 30"
  • Horizontal 3-section 2-fold joint beam for 3-monitor length: 65.9" (167.3cm)
  • Quick-release/attachment mounting heads and swivel arms to assist with multiple installations
  • Install the swivel arms at any point on the vertical pole; Variable height adjustment - placing the screen at the right height for you or dynamically adjust height up to 9.4" with Dynamic Height Adjuster optional accessory
  • Excellent space-saving and ergonomic solution
  • Cable management housings and clips on the underside of the arms route and hide cords
  • Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 9 x 28" flat panel screen
  • Weight Capacity Supports up to 132 Lbs (60 Kg) in total
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 8" (205 mm)
  • Maximum Extension 17" (432 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm), optional 2.9" X 43.3" (74 X 1100 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
