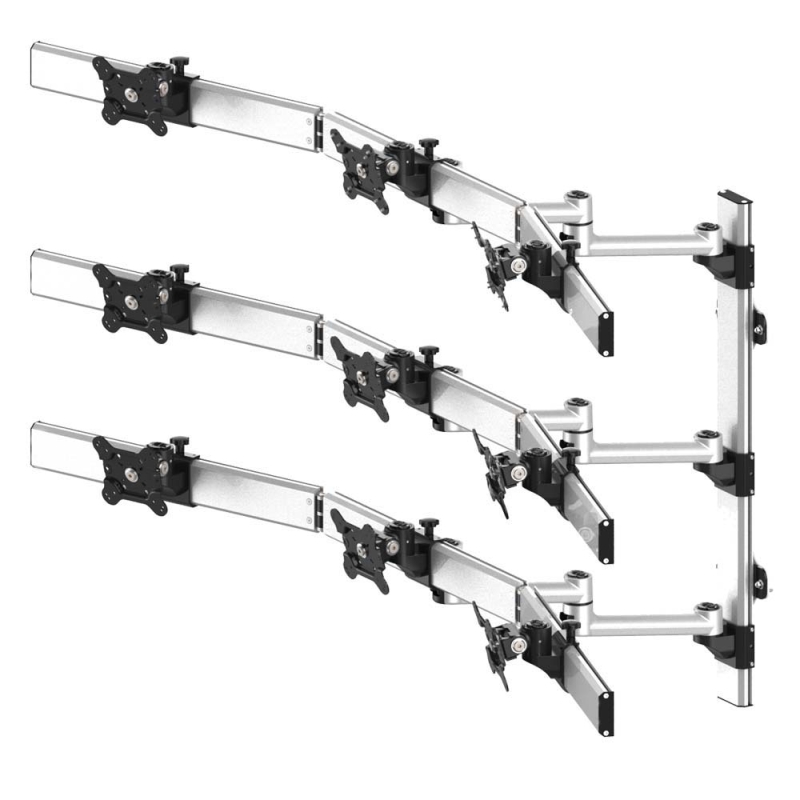

VESA Wall Mount for 9 Monitors 3x3 with dual swivel arm
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price

VESA Wall Mount for 9 Monitors 3x3 with dual swivel arm

Three monitors 3-section 2-fold joint beam length: 65.75" (1670 mm); Three screens in each row can be placed straight or in the cockpit shape.

Supports nine monitors 3X3, average monitor width no more than 35.15" (800 mm) for the three next to each other, average monitor height no more than 15.75" (400 mm) for the three up and down.

This is optimal for corner mounting.

Information Specifications Reviews Other Solutions
Availability: In stock


VESA Wall Mount for 9 Monitors 3x3 with Swivel Arm is a multiple monitor wall mount with 115 degrees up/down tilt & up to 180-degree swivel functionalities. 90-degree monitor rotation enables portrait and landscape positioning.

Aluminum alloy material renders the LCD monitor mount lightweight yet sturdy, with a weight capacity of 13.2 lbs (6 kg) for each monitor. Optimal viewing angles and most ergonomic positioning can be achieved through the multiple flat panel mount full motion characteristics.

This mounting bracket, which fits all standard types of walls, is ideal for classrooms, offices, homes, public areas, industrial settings, production lines, and many more.

The monitor arm features integrated durability through state of the art engineering technology and is tested for strength in our oversea manufacturing plant.

The LCD wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts.


  • Vertical Wall Mount Type: Supports up to 9 x 25" LCD monitors with the standard offering or up to 9 x 28" with the option of HVW-S11
  • The monitor beam can be adjusted in an arc configuration
  • Accommodates various display sizes; slide screens into place to align edges
  • Easy-adjust by hands: 90 degrees backward / 25 degree forward tilting, 90-degree rotation, and 90-degree swivel
  • The two swivel arms create more extensions which would also allow the whole row of screens to be swiveled left or right at bigger angles.
  • Swivel arm features quick release design: only a matter of a 'click' to get connected and with a push of a button then lift off to get disconnected
  • Durable aluminum alloy materials
  • Easy to use, Simple installation, and effortless operation
  • Cable management feature conceals and routes cables under the arm, out of the way
  • Environmentally friendly - material usage is considered.
  • Height Adjustment Range: 9.4" dynamically with Front-end Adjuster (FVL-S1) option
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 9 x 25" flat panel screen
  • Weight Capacity Supports up to 132 Lbs (60 Kg) in total
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 8" (205 mm)
  • Maximum Extension 27" (685 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm), optional 2.9" X 43.3" (74 X 1100 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
