Vertical 3 Monitor Wall Mount
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price

Vertical 3 Monitor Wall Mount

Provide a variety of enhanced features! Quick to install and easy to use, providing a great wall mount solution for installing any flat panel monitor.

Information Specifications Reviews Other Solutions
Availability: In stock

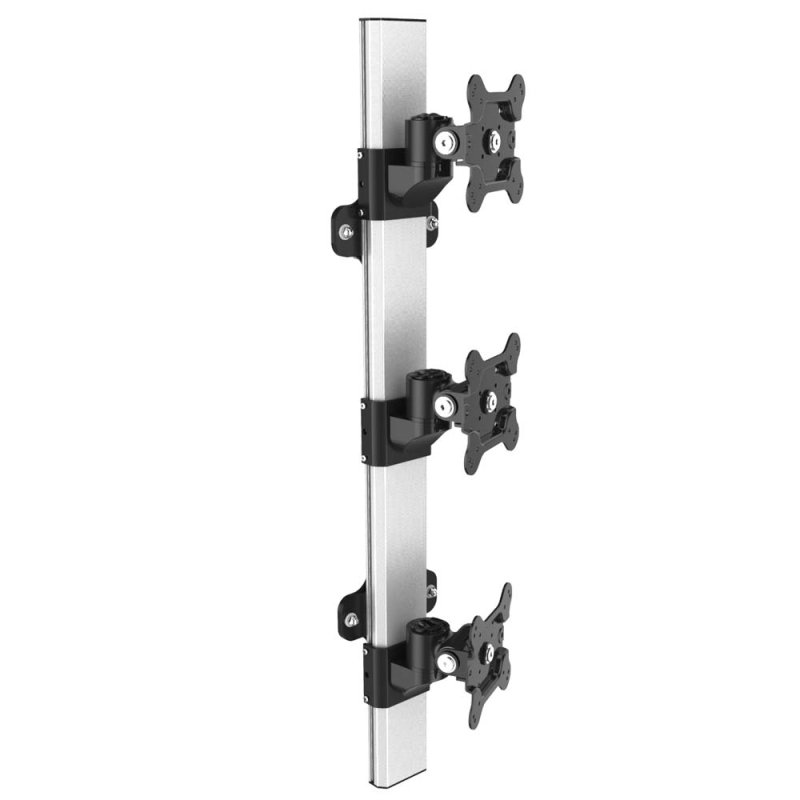

Ergonomically designed to support three monitors wall-mounted, this ingenious multi-monitor stand is lightweight, fully adjustable, and easy to install. The HV-S3P allows tilting and pivoting movements up to 115 degrees, giving you the freedom to position your monitors vertically or horizontally, perfect for control room functions.

Constructed from lightweight and durable aluminum, the HV-S3P model comes with a set of heavy-duty wall plates, ensuring that your monitors will stay put on any wall surface. Ideal for workplaces that require day-to-day multi-screen displays, our sleek, comprehensive display solution will save the day in style!

Our HV-S3P is designed to be compatible with any flat screen or tablet monitor of varying sizes that weigh up to 22lbs (approx. 10 kg.), and each HV-S3P comes complete with a silver three-monitor wall display with three individual monitor bracket and a set of table mounting walls.


  • Vertical Wall Mount Type: Supports up to 3 x 25" LCD monitors with the standard offering or up to 3 x 32" with the option of HVW-S11
  • Easy-adjust by hands: 90 degrees backward / 25 degree forward tilting, 90-degree rotation, and 90-degree swivel
  • A quick-release lever facilitates easy attachment and removal
  • Scalable solution: Easy to add and remove arms
  • Easy manual height adjustment
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Easy to use: Simple installation and effortless operation
  • Provides easy organization of cables
  • Minimal environmental impact
  • Height Adjustment Range: 9.4" dynamically with Front-end Adjuster (FVL-S1) option
  • Our most cost-effective triple - screen solution
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 3 x 28" flat panel screen
  • Weight Capacity Supports up to 44 Lbs (20 Kg) for each monitor
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 5.1" (130 mm)
  • Maximum Extension 5.1" (130 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm), optional 2.9" X 43.3" (74 X 1100 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
