Octamount Expansive Flat Panel Eight Monitor Wall Mount
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price
$810.00

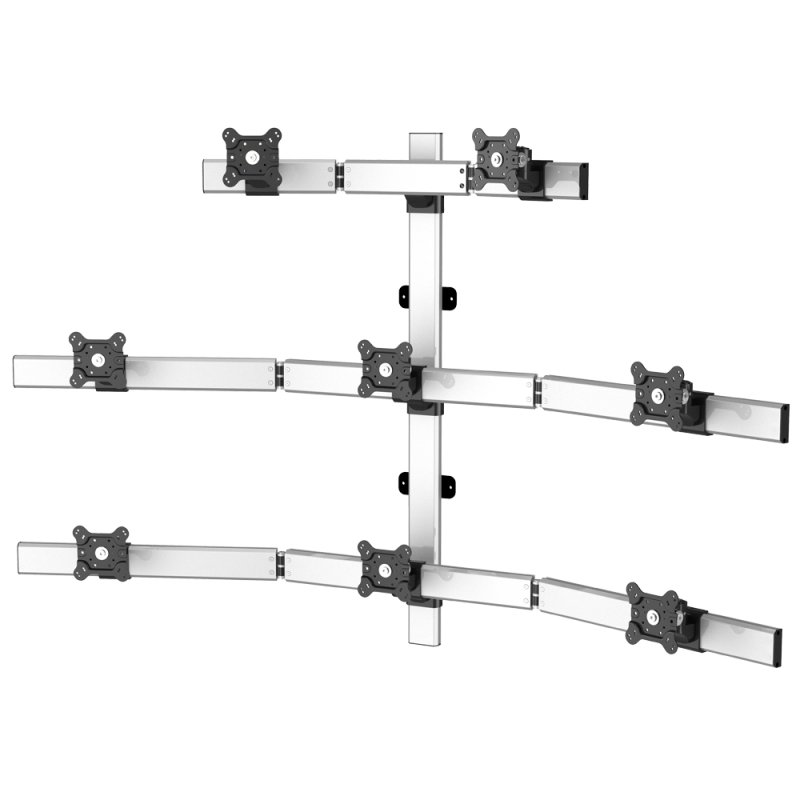

Octamount Expansive Flat Panel Eight Monitor Wall Mount

Eight mounting brackets are located along a mount that delivers an outstanding suite of features and benefits. Great for both PC and Apple compatible products.
Information Specifications Reviews Other Solutions
In stock
SKU
HV-S8J2J3

Description

Never should you have to make compromises when in the market for a mount that can support multiple screens. The Octamount Expansive Flat Panel Eight Monitor Wall Mount incorporates expansive displays that give your employees all the elbow room they need and the ergonomic friendly viewing options.

Capable of housing up to eight 25” monitors, with a maximum weight capacity of 110 lbs., this unit is constructed from premium-grade materials for durability and stability. Accommodating to both PC and Apple products (by way of an additional adapter, sold separately), every mounting bracket ensures that users have a suite of display options at their fingertips. Enjoy including 90° rotation from portrait to landscape mode, 115° of tilt (-90° backwards, +25° forwards), 180° of swivel, and 8” of extension. 9.4” of dynamic height adjustability is also available, and each bracket functions independently of all the others.

And while the Octamount Expansive Flat Panel Eight Monitor Wall Mount may look impressive, it’s just as easy to install as any of our other great products. It supports popular VESA mounting hole patterns of 75 x 75 and 100 x 100 (can support 200 x 100 or 200 x 200 via an additional adaptor plate, sold separately).

Features

  • Wall mount type, supports eight flat screens up to 28"
  • Maximum productivity and supreme ergonomic comfort
  • Two lateral beams are connected to a 21.25" (540 mm) central beam with articulating hinges that can be angled to create an arc shape
  • Maximum adjustment rendered by tilting, swiveling, pivoting and rotation
  • Eight-monitor configuration increases productivity
  • Constructed from polished aluminum and black trim for maximum strength, environmentally friendliness and bold aesthetics
  • Easy assembly for convenient usability
  • Integrated cable management provides clean, professional installation finish
  • Configuration Flexibility: Install one or two arm extensions or only the LCD pivot as needed
  • Height Adjustment Range: 9.4" dynamically with Front-end Adjuster (FVL-S1) option
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 8 x 28" flat panel screen
  • Weight Capacity Supports up to 132 Lbs (60 Kg) in total
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4 inch (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 8" (205 mm)
  • Maximum Extension 8" (205 mm)
  • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm), optional 2.9" X 43.3" (74 X 1100 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
