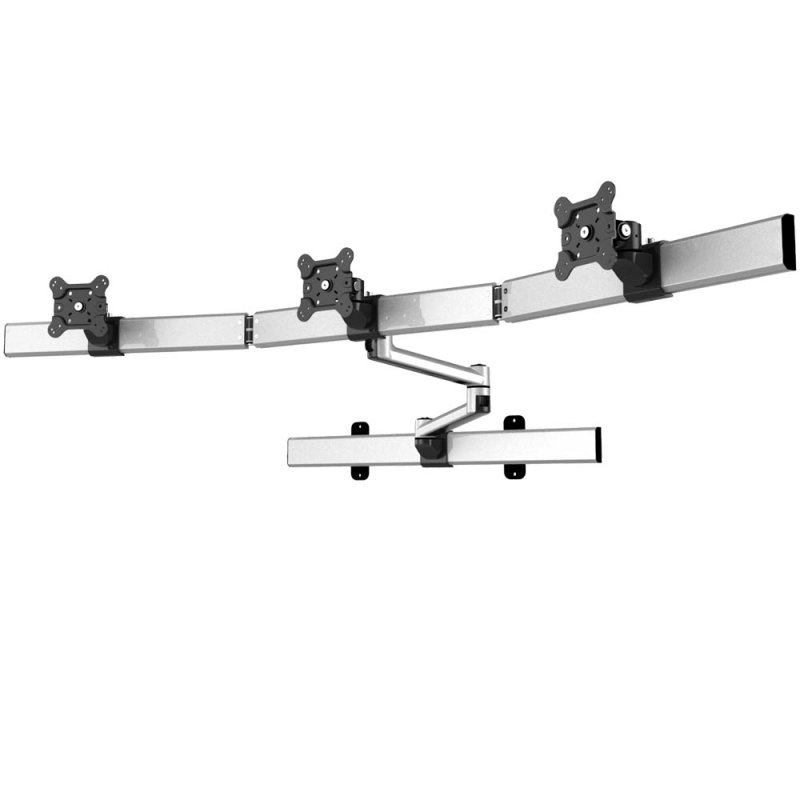

Triple Arc and Dual Swivel Slideable Wall Mount
Create a stunning display with three side-by-side monitors on a durable crossbar that you can arrange in an effortless arc or a straight line.
Availability:
In stock
SKU
HV-S3SWWJ3
Description
Mounting three flat-panel monitors has never been easier! The sleek silver and black mounting system are lightweight yet incredibly strong to lock your monitors in position. Whether you install the mounting slide bar horizontally or vertically, this system offers enhanced features to customize the best viewing angles in your space.
Slide the entire monitor system across the main bar and adjust the swivel arms for a wide range of motion. The monitor beam that holds the three displays can be adjusted straight across or into a popular arc-style viewing shape. You can even adjust the individual monitors with a wide range of flexibility. Easily adjust by hand to quickly access 115-degrees of tilt and 90-degree rotation to change between portrait and landscape orientations.
The 2-directional wall mount bar can be installed horizontally or vertically, depending on your workspace's limitations and features. This also makes it easy to arrange the screen in a corner space. The adjustable swivel arms are essential for corner mounting and can also be adjusted over time as the layout of your space changes. And of course, it works great for non-corner spaces too!
Features
- Supports three flat-panel VESA monitors up to 28" with mounting hole patterns of 75 x 75 and 100 x 100
- Provides full-range of extending, retracting, tilting, swiveling, rotation, and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
- Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics, and extended life
- Dual-directional wall mount bar can be placed vertically or horizontally; making it flexible for single stud or double stud mounting; Length: 31.5" (80cm)
- The specially designed bar has two great features: it can be slid along the two wall-mount brackets, which is especially useful when the wall surface is not symmetrical; and monitors can be slid along this bar for best positioning
- Three-section two-fold joint beam length: 65.87"
- Quick-release/attachment mounting heads and swivel arms to assist with multiple installations
- Dynamically adjust height up to 9.4" with Dynamic Height Adjuster optional accessory
- Excellent space-saving and ergonomic solution
- Cable management housings and clips on the underside of the arms route and hide cords
- Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
- Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
- Fits Monitor Sizes Supports up to 3 x 32" flat panel screen
- Weight Capacity Supports up to 66 Lbs (30 Kg) in total
- VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
- Rotation 90° Landscape / Portrait
- Tilt 115°, Backward -90°, +25° Forward
- Swivel 180°
- Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
- Minimum Profile From Wall 8" (205 mm)
- Maximum Extension 27" (685 mm)
- Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm)
- Mounts on Studs Double-stud (mount spacing of 16" (406 mm)
- Type of Display PC monitor & compatible Apple display with option part # ADA-S1
- Color Metallic Silver & Glossy Black
