Double the View Articulating Mount
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price
$185.00

Double the View Articulating Mount

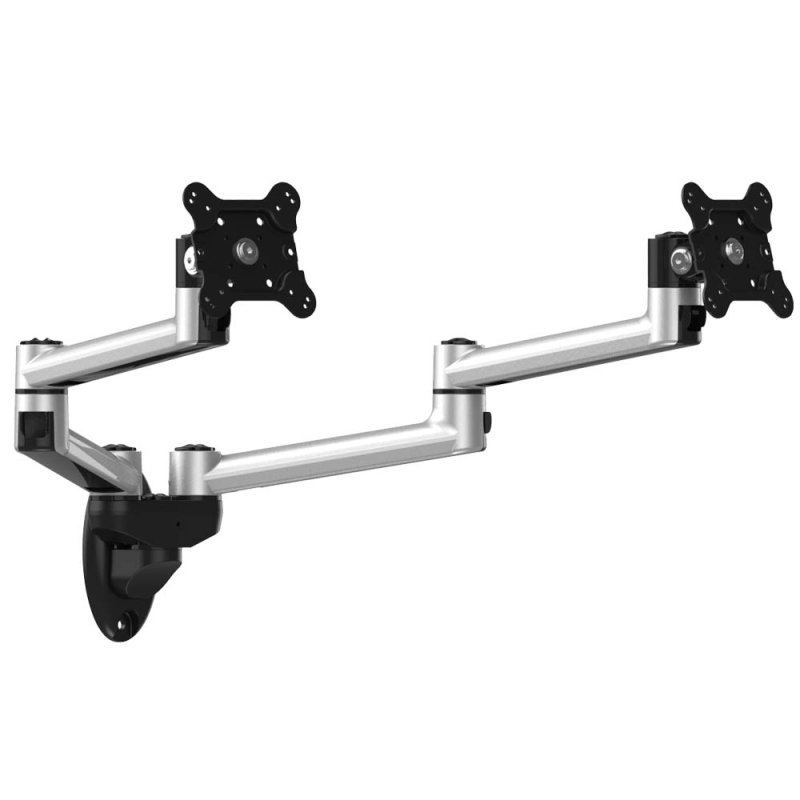

No matter what configuration, this lightweight wall mount is fully adjustable to position two monitors in the exact setting of your choice - landscape or portrait!
Information Specifications Reviews Other Solutions
In stock
SKU
MW-SDSWW

Description

Discover your workspace possibilities with the Double the View Articulating Mount. This highly durable mount is incredibly light with aluminum alloy material that is beautifully accented with sleek black connecting points. Each articulating arm has six different points of motion that you can swivel, tilt, bend, and tip to achieve the perfect viewing angles.

Attach one monitor of up to 22lbs (10kg) on each arm and arrange them side by side or adjust them to be viewed in different areas. The monitors have 360-degree rotation to accommodate landscape or portrait orientations as well as 115-degrees of vertical tilt. Plus, the system has built-in cord management and a quick release design for a clean look and unmatched functionality.

Features

  • Supports two flat panel VESA monitors up to 32” with mounting hole patterns of 75 x 75 and 100 x 100
  • Provides full-range of extending, retracting, tilting, swiveling, rotation and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
  • Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics and extended life
  • Mount on single stud
  • Quick release/attachment mounting heads and swivel arms to assist with multiple installations
  • Dynamically adjust height up to 9.4" with Dynamic Height Adjuster (Select One) optional accessory
  • Excellent space saving and ergonomic solution
  • Cable management housings and clips on the underside of the arms route and hide cords
  • Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
  • Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
  • Fits Monitor Sizes Supports up to 32" flat panel screen
  • Weight Capacity Supports up to 44 Lbs (20 Kg) for each monitor
  • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
  • Rotation 90° Landscape / Portrait
  • Tilt 115°, Backward -90°, +25° Forward
  • Swivel 180°
  • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
  • Minimum Profile From Wall 4.3" (109 mm)
  • Maximum Extension 23" (586 mm)
  • Wall Plate Dimensions Wide: 6.25" X High: 4.25" X Deep: 19.5" (159 X 108 X 495 mm)
  • Mounts on Studs Single-stud
  • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
  • Color Metallic Silver & Glossy Black
